Powercom UPS Australia

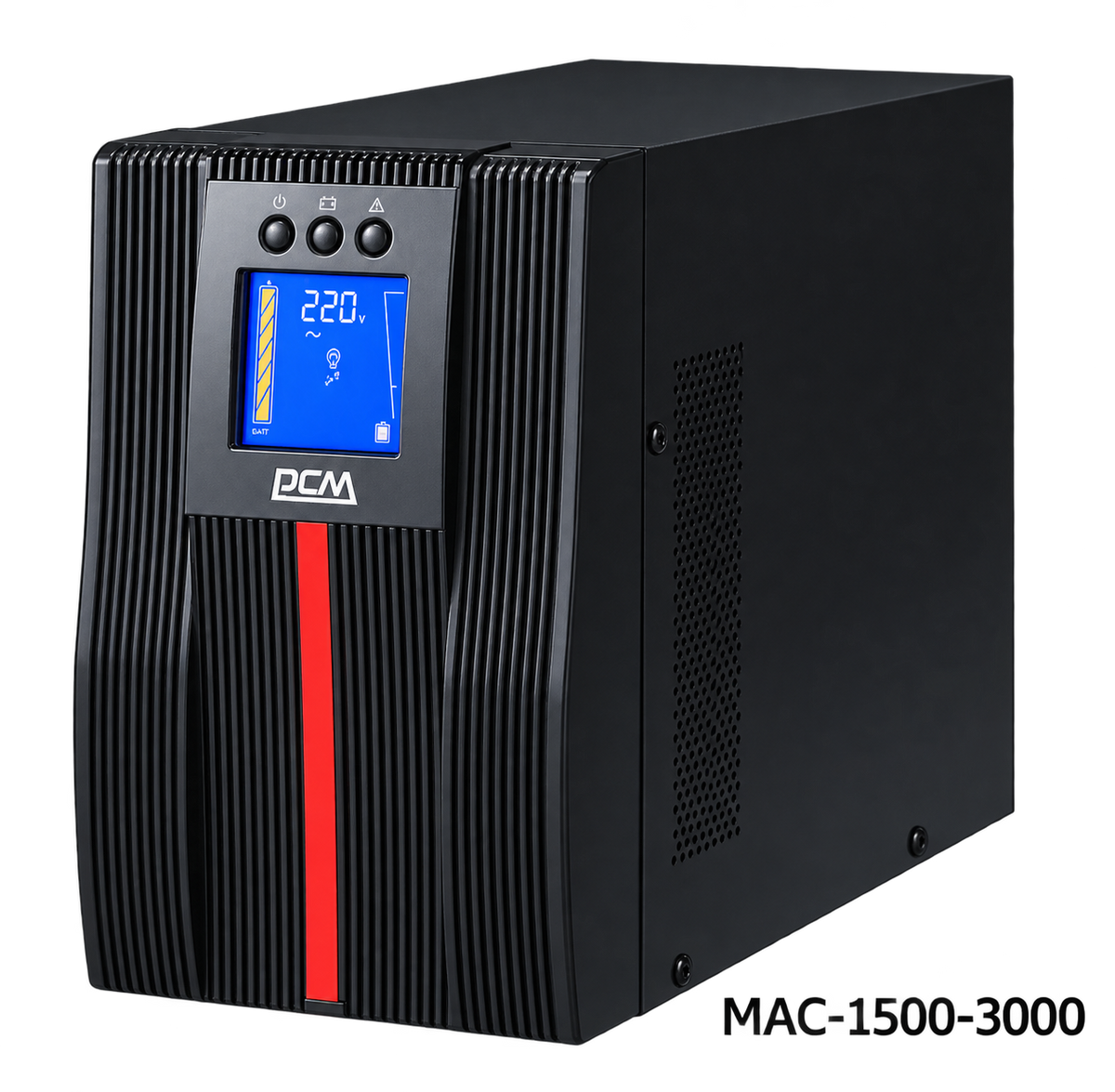

Macan Tower 2000VA PSW On-Line
$1,699.00
AUD
inc. GST
On-Line Double Conversion, Commercial Pure Sine Wave (PSW),1.0pf. Tower, IEC Outlets,
LCD Front Panel, Network/Alarm Card Slot, External Battery Pack Connector, USB Interface.
UPS
Model
MAC-2000
Capacity VA
2000 VA
Capacity (Watts)
2000 W
Form
Tower Type
Phase
Single Phase
Energy Saving
Yes - ECO Mode Efficiency > 94%
INPUT
Voltage
100 / 110 / 120 or 208 / 220 / 230 / 240 Vac
Voltage Range
60 - 144 Vac, < 25% Load 120 - 276 Vac, < 25% Load
70 - 144 Vac, < 50% Load 140 - 276 Vac, < 50% Load
80 - 144 Vac, < 75% Load 160 - 276 Vac, < 75% Load
90 - 144 Vac, < 100% Load 180 - 276 Vac, < 100% Load
Frequency Range
50 / 60 Hz (Auto Sensing)
Power Factor
> 0.97
Cold Start
Yes
OUTPUT
Rated Power Factor
1.0
Waveform
Pure Sine Wave
Voltage
100* / 110* / 120 / 127 VAC ± 2% or 208* / 220 / 230 / 240 Vac ± 2%
Frequency
50 / 60 Hz ± 0.25 Hz
Transfer Time
0 ms
Harmonic Distortion
≦ 2.5% THD at Linear Load
Crest Factor
3 : 1
EPO Function
Option
PROTECTION
Overload
Line Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Overload
Battery Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Surge Protection
IEC 61000-4-5 Level 3
Bypass
Internal Bypass(Automatic and Manual)
Short Circuit Protection
UPS Output Cut Off Immediately
BATTERY
Type
12V 7Ah
Quantity
6
Sealed, Maintenance Free
YES
Recharge Time
4 Hr to 90%
External Battery Cabinet
Option
12V 7Ah*6, 24Vdc
12V 7Ah*8, 48Vdc
12V 7Ah*12, 72Vdc
12V 7Ah*20, 240Vdc
12V 9Ah*20, 240Vdc
External Battery Connector
Option
MANAGEMENT
Communication Port
RS232, USB(B-type)
LCD Control Panel
YES
SNMP Slot
Option
Audible Alarms
YES
PHYSICAL
Dimension (W×D×H)(mm)
191 x 406 x 327
Weight (kgs)
20.3
Shipping Dimensions (mm)
292 x 500 x 455
Shipping Weight (kgs)
22.3
