Powercom UPS Australia

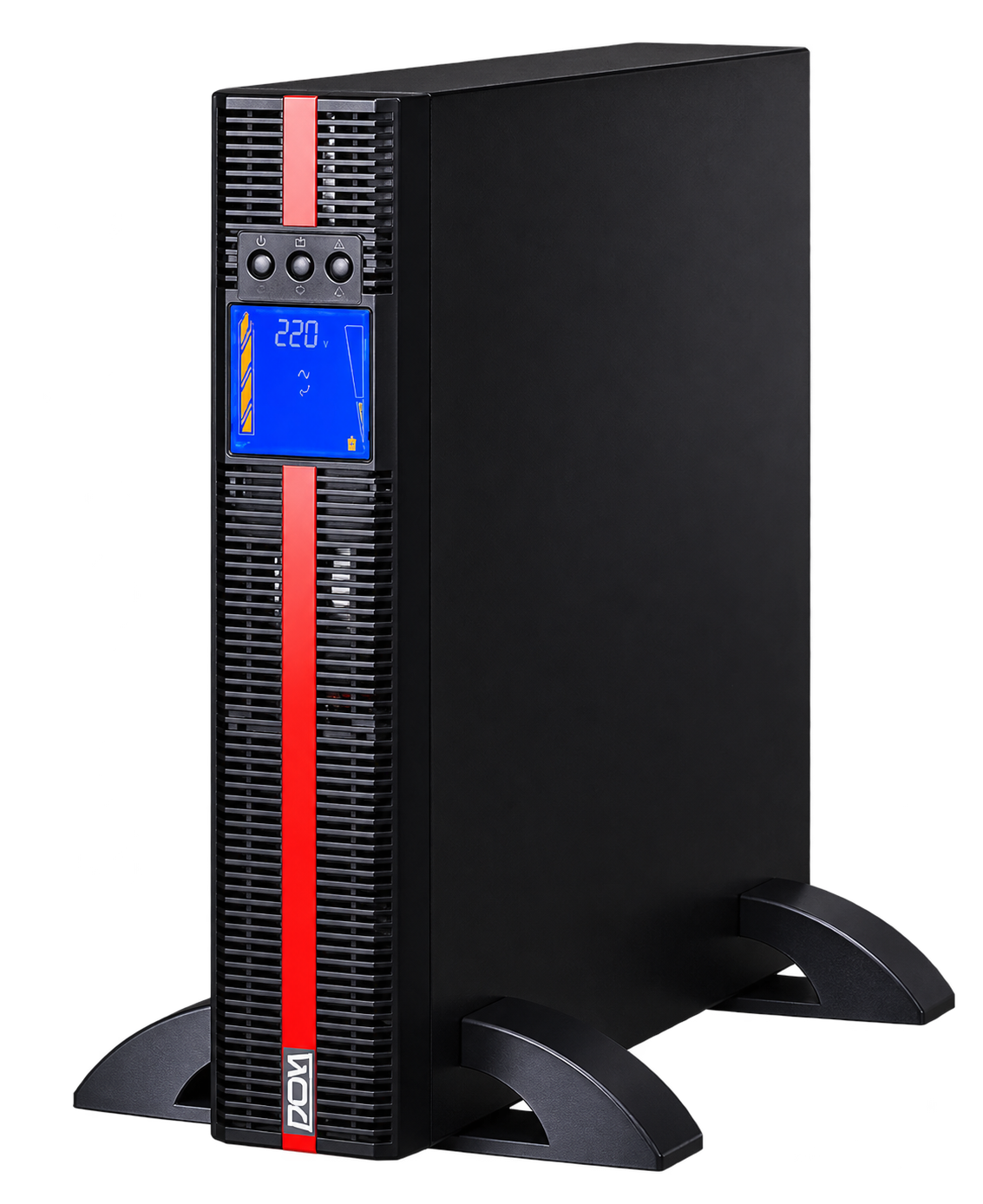

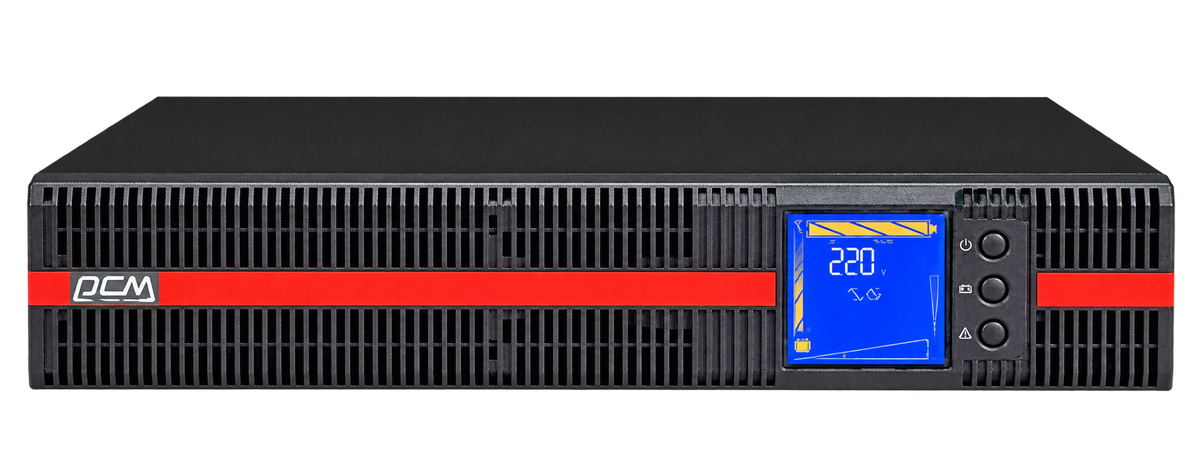

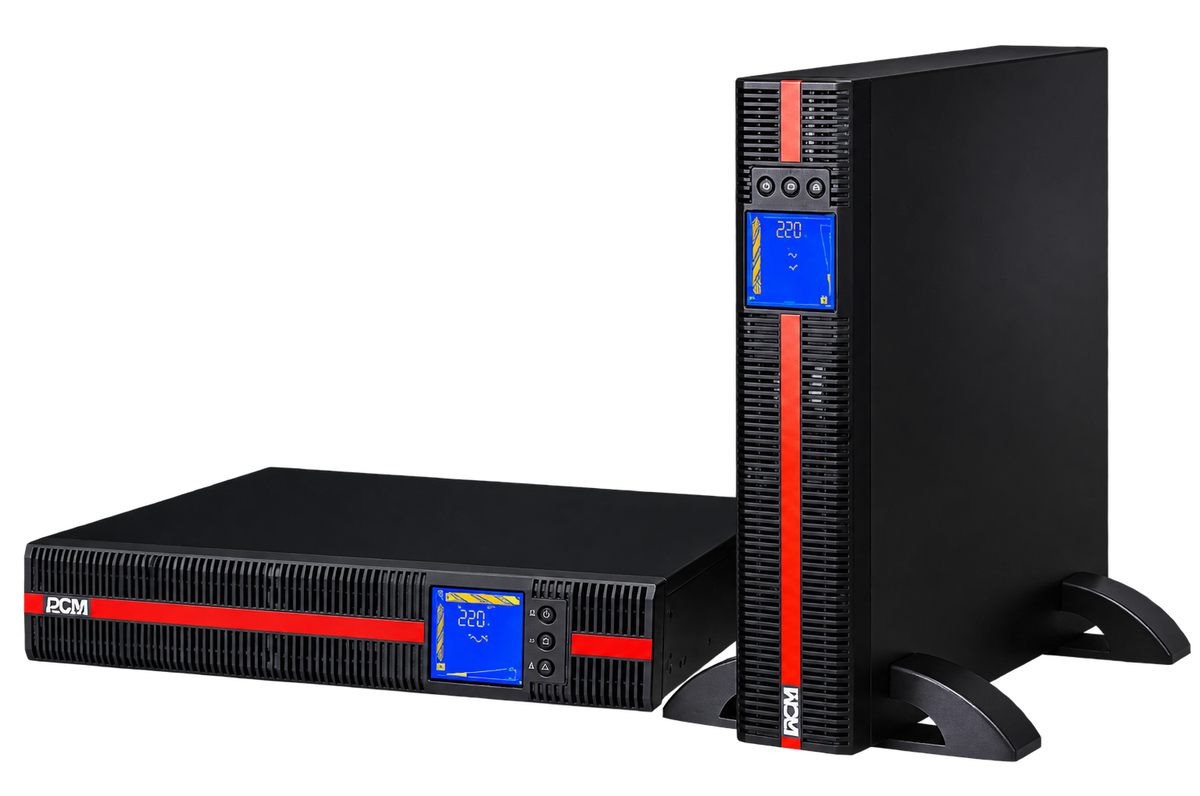

Macan Rack/Tower 3000VA PSW On-Line
$2,545.00
AUD
inc. GST
On-Line Double Conversion, Commercial Pure Sine Wave, 1.0pf. Rack/Tower Convertible with IEC Outlets
LCD Front Panel, Network/Alarm Card Slot, External Battery Pack Connector and USB Interface.
UPS
Model
MRT-3000
Capacity VA
3000 VA
Capacity (Watts)
3000 W
Form
Rack & Tower
INPUT
Voltage
208 / 220 / 230 / 240 Vac
Voltage Range
120 - 140 Vac, < 25% Load
140 - 160 Vac, < 50% Load
160 - 180 Vac, < 75% Load
180 - 276 Vac, < 100% Load
Frequency Range
50 / 60 Hz (Auto Sensing)
Power Factor
> 0.97
Cold Start
Yes
OUTPUT
Rated Power Factor
1.0
Waveform
Pure Sine Wave
Voltage
208 / 220 / 230 / 240 Vac ± 2%
Frequency
50 / 60 Hz ± 0.25 Hz
Transfer Time
0 ms
Harmonic Distortion
≦ 2.5% THD at Linear Load
Crest Factor
3 : 1
EPO Function
Option
Output Receptacle Option
PROTECTION
Overload
Line Mode
105% - 120% for 30 seconds
121% - 150% for 10 seconds
Overload
Battery Mode
101% - 109% for 10 seconds
110% - 120% for 3 seconds
Surge Protection
IEC 61000-4-5 Level 3
Bypass
Internal Bypass(Automatic and Manual)
Short Circuit Protection
UPS Output Cut Off Immediately
BATTERY
Model
MRT-3000
Type
12V 9Ah
Quantity
6
Sealed, Maintenance Free
YES
Recharge Time
4 Hr to 90%
External Battery Cabinet
Option
External Battery Connector
Option
MANAGEMENT
Communication Port
RS232, USB(B-type)
LCD Control Panel
YES
SNMP Slot
Option
Audible Alarms
YES
ENVIRONMENT
Operating Humidity
0~90% RH at 0~40°C(Non-condensing)
Audible Noise
Less than 40 dB
Altitude
< 2000m
Heat Dissipation (BTU/h)
1024
PHYSICAL
Power Module
Dimensions (W×D×H) (mm)
428 x 635 x 84
Power Module
Weights (Kgs)
29
Power Module
Shipping Dimensions
550 x 750 x 220
Power Module
Shipping Weights
33.4
Battery Module
Dimensions (W×D×H) (mm)
428 x 635 x 84
Battery Module
Weights (Kgs)
37.3
Battery Module
Shipping Dimensions
550 x 750 x 220
Battery Module
Shipping Weights
40.8
