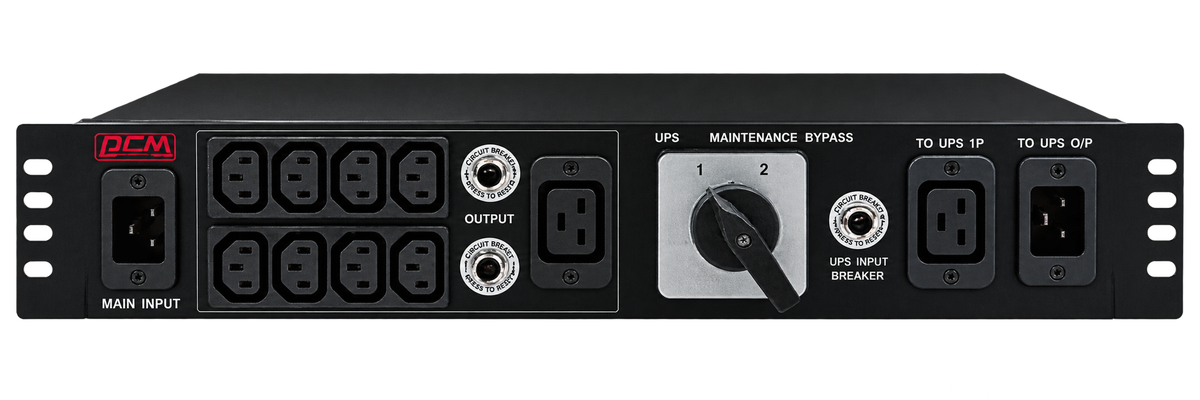

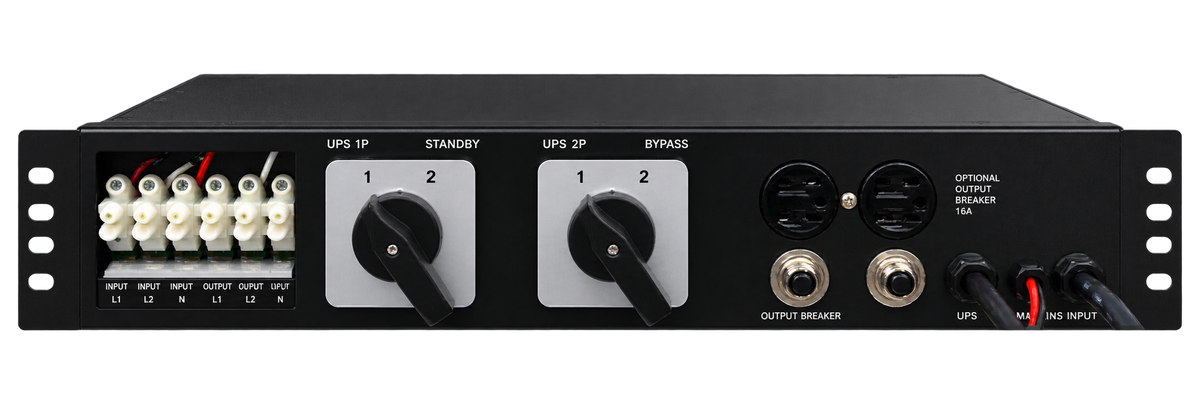

POWERCOM TC-ATS 10/16 Traffic Control Auto Transfer Switch 10/16A
Powercom UPS Australia

Traffic Control Auto Transfer Switch 10/16A

$1,273.00 AUD inc. GST
  • Automatic Transfer Switch
  • Power Uninterrupted during UPS Maintenance
  • Wall / shelf mounting bracket
  • Bypass Switch for Complete Maintain or Removal
  • Auxiliary Output Provided (eg Battery Heater Mats)
  • Terminal Block for Line Power and Loads
GENERAL
Model
ATS 10A ATS 16A
INPUT
Voltage Range
199 - 262 Vac
Nominal Voltage
230 Vac / 10 A 230 Vac / 16 A
OUTPUT
Transfer Time
Auto Transfer Switch: 10 ms | Manual Bypass Switch: 16 ms (Typical) Depend on hand switch speed)
PHYSICAL
Dimension (W×D×H)(mm)
485 x 130 x 85
Weight (kgs)
2.6
Mounting
2U Rack Mount
CONNECTION
Main Input
IEC - C14 IEC - C20
Main Output
IEC - C13 * 12pcs IEC - C13 * 8pcs | IEC - C19 * 1 pcs
UPS Connection (To UPS O/P)
IEC-C14 IEC-C20
UPS Connection (To UPS I/P)
IEC-C13 IEC-C19
